Few days back I received one request about Mysql WorkBench Usage. So in this post I want to explain with screen shots to create a visual database design, follow these steps.
I prepared this tutorial to improve your Database design Skills in Visual style.
Download Mysql WorkbenchFor example if we want to project like Twitter web site updating user profile, our database will have these entities:
1 - Users( User_name, password, email, some registration data....)
2 - Updates( Updates/Messages added by the Users)
Step 1 -> Add EER Diagram
Step 2 -> Place a New Table

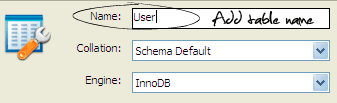

Ok now... edit the table just right click.

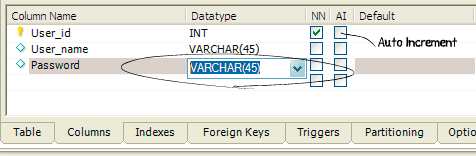

You have to add Column and fix the Data types.

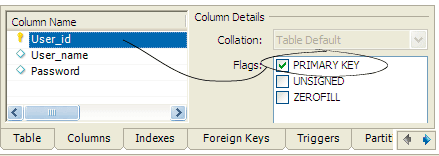

Set the table Primary Key in Column details
Same way you have to create Update table also.
Step 3->Link the both table with Relationship tools
Link the Updates table to Users table automatically generate Foreign key column.
Finally export project SQL script.
We can export ERR Diagram image *.png formate also.
If you feel free post a Comment..
